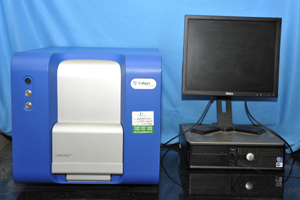

LabChip GX II

Instrument Details

Make: Caliper Life Sciences, USA

Model: LabChip GX II

Specification: Automated Electrophoretic Separations of DNA and RNA

The LabChip GX II provides fast and easy way to analyze DNA and RNA samples across a wide range of molecule and fragment sizes. Performing sample analysis with these assays on the LabChip GX/GX II instruments saves time and money by automating the necessary steps for electrophoretic separations. The LabChip GX II runs DNA and RNA assays. The LabChip GX II Electrophoresis Systems use a single sipper microfluidic chip to aspirate samples directly from 96- or 384-well plates. The instrument optics detects samples by laser-induced fluorescence. System software automatically analyzes the data and provides sizing and quantification using ladder and marker calibration standards. Digital data results are immediately available for review or reporting in virtual gel, electropherogram graph, or table summary form.

Working Principle

The LabChip GX assays are based on traditional gel electrophoresis principles that have been transferred to a chip format. The chip format dramatically reduces separation time and provides automated sizing and quantitation information in a digital format. The chip contains an interconnected set of microchannels that join the separation channel and buffer wells. One of the microchannels is connected to a short capillary that extends from the bottom of the chip at a 90-degree angle. In the chip, each sample is sipped by negative pressure until a sufficient quantity is loaded in the chip. The sample is then moved electrophoretically into the central channel. As the fragments move down the central channel, they separate by size, finally passing the laser that excites the fluorescent dye bound to the molecule. The software plots fluorescence intensity versus time and produces electropherograms for each sample. The data can also be viewed in a gel-like format on the Gel Tab to achieve the appearance of a slab gel. Quantitating the concentration and accurately sizing each fragment are achieved by comparing against a sizing ladder and running internal standards or “markers” with each sample.

Applications

SSR genotyping for millets useful for DNA fingerprinting and QTL mapping.

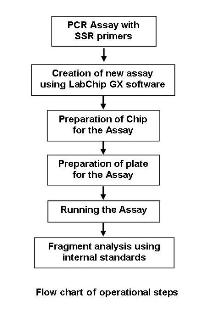

User Instructions

  1. Genomic DNA sample must be pure without any contaminants.
  2. DNA samples should have good quality with a concentration of 50 ng/µl.
Contact Us: Dr. P Rajendrakumar / 040-24599326 / rajendra@millets.res.in



Genotyping charges include GST
  Industry University National Lab/R&D’s
SSR Genotyping Rs 150 Rs 60 Rs 100 Per sample


Kindly include this note in your requesting letter exactly as it is :

"Content of this report is meant for our information only and we will not use the content of this report for advertisement, evidence, litigation or quote as certificate to third party"
