TEXTURE ANALYZER

Instrument Details


Make: Brookfield, USA
Model: CT3 50K
Specification: Load : Range - 5- 50000 grams, Resolution – 5.00gms, Accuracy - ±0.5% FSR (Full Scale Range).
Trigger point:range –5- 5000gms
Speed: 0.01 to 0.1 mm/s in increments of 0.01 mm/s, 0.1 to 10 mm/s inincrements of 0.1 mm/s, Accuracy: ±0.1% of set speed
Position: Range: 0-101.6 mm, Resolution: 0.1mm, Accuracy: 0.1mm

The CT3 is universal testing machine that offers both compression and tensile testing. It can calculate, through compression and tensile data, a number of physical properties that have proven to be highly correlated to human sensory evaluation of food and other consumer products. With six built-in test modes and ten memory slots for operator-protected tests with administrator rights, a wide choice of accessories and software package, the CT-3 is perfect for most any physical testing requirements (springiness, chewiness, hardness etc,). The CT3 performs like a high end texture analyzer.

Working Principle

The Brookfield CT3 Texture Analyzer can be operated in either compression or tension modes.
In compression mode, a probe moves down slowly at pretest speed until a threshold value (thetrigger) is reached. The probe then moves a set distance at a set speed into the sample material thatis placed (or fixed) on the base table. The load is continuously monitored as a function of both timeand distance until the probe again returns to its starting position.
In tension mode, the sample is typically held between a pair of grips. The test starts when the triggerload is reached as the grips move apart. The load resistance as the sample is stretched or pulledapart is recorded as a function of both time and distance.

Applications

1. Biscuits, Bread, Cakes, Chocolate, Cookies, Crackers and Snack Foods

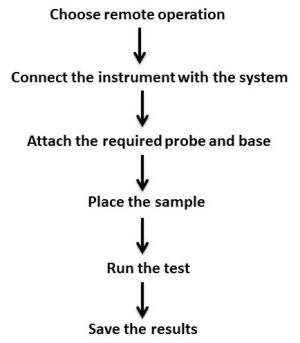

User Instructions

1. For good test repeatability, it is suggested that a clear and complete test method be developed. Probes should be maintained clean and properly.

Contact Us: Dr. B Dayakar Rao

Phone: 040-24599331
E-mail: dayakar@millets.res.in



Costing
Parameter Industry University National Labs/R&D's
Texture analysis Rs 2000 Rs 500 Rs 1000 Per sample


Kindly include this note in your requesting letter exactly as it is :

"Content of this report is meant for our information only and we will not use the content of this report for advertisement, evidence, litigation or quote as certificate to third party"
